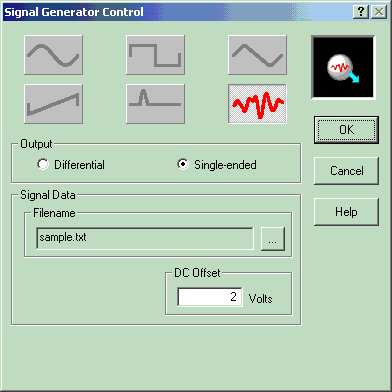

Signal Data File (Single Ended)

Signal Data

Select the file that will describe this signal. Browse to the file by pressing .

DC Offset

Enter desired DC voltage offset value for the signal.

This signal generator control supports two file types:

·Piece-Wise Linear Signal File (*.csv, *.txt)

·PCM Encoded Wave Files (*.wav)
