PCM Encoded Windows WAV Files (*.wav)

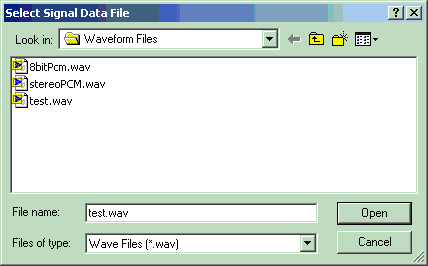

Any Windows PCM WAV (*.wav) file can be used to describe the signal generator’s output. Select the waveform in the file dialog by choosing the proper file type:

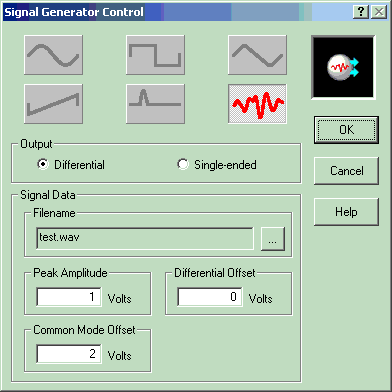

Once you have chosen a PCM WAV (*.wav) file, the peak amplitude field is added. The PCM data is normalized, and then multiplied by the peak amplitude value you set:

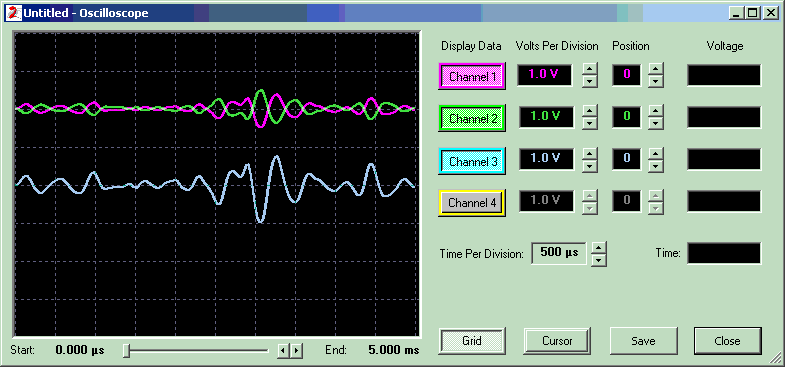

Example oscilloscope output of the above signal generator:

Probe Setup:
