The oscilloscope consists of a display area and display controls. The oscilloscope provides the following controls:
Adjust voltage per division for each channel
Adjust the relative voltage display position for each channel
Change the time per division to expand/contrast the trace display
Change the starting time to view different portions of the trace
Cursor function to readout voltage values
Save scope traces in a Comma Separated Variable (.csv) file

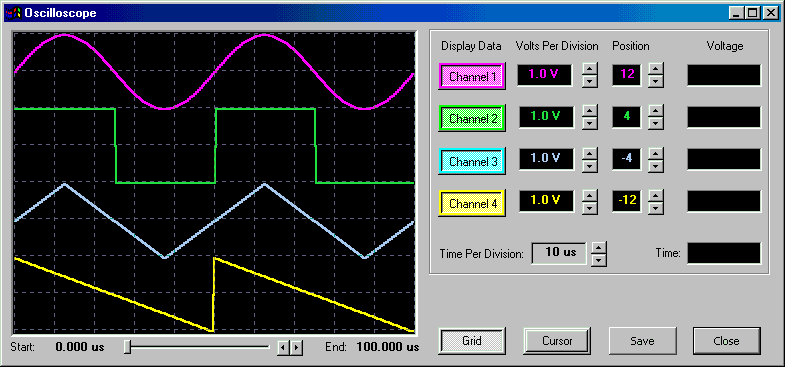

A sample oscilloscope with all four probes is displayed below:

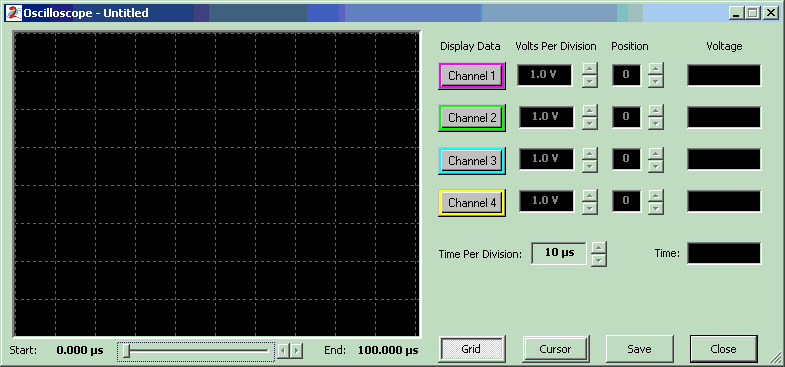

Oscilloscope display area display ON/OFF
