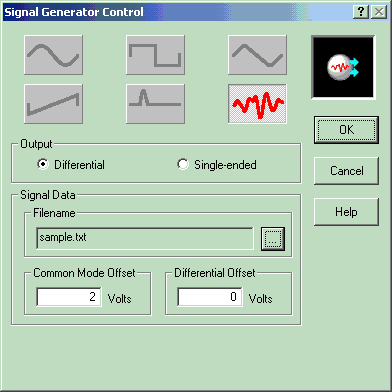

Signal Data File (Differential)

Signal Data

Select the file that will describe this signal. Browse to the file by pressing .

Common Mode Offset

Enter desired common mode offset value.

Differential Offset

Enter desired voltage offset value for the differential signal.

This signal generator control supports two file types:

·Piece-Wise Linear Signal File (*.csv, *.txt)

·PCM Encoded Wave Files (*.wav)
