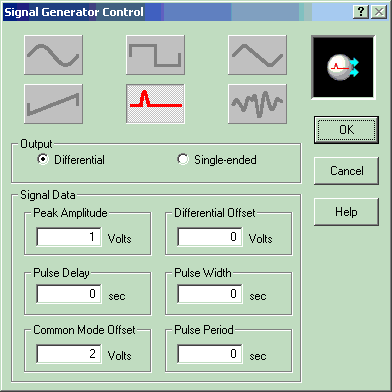

Peak Amplitude
Enter desired amplitude in volts. A negative value will invert the signal.
Differential Offset
Enter desired voltage offset value for the differential signal.
Pulse Delay
Enter the delay before the pulse will be turned on (in seconds).
Pulse Width
Enter the width of the pulse in seconds.
Common Mode Offset
Enter desired common mode offset value.
Pulse Period
Enter the desired period for the pulse in seconds. A value of zero will allow the pulse to only occur once.

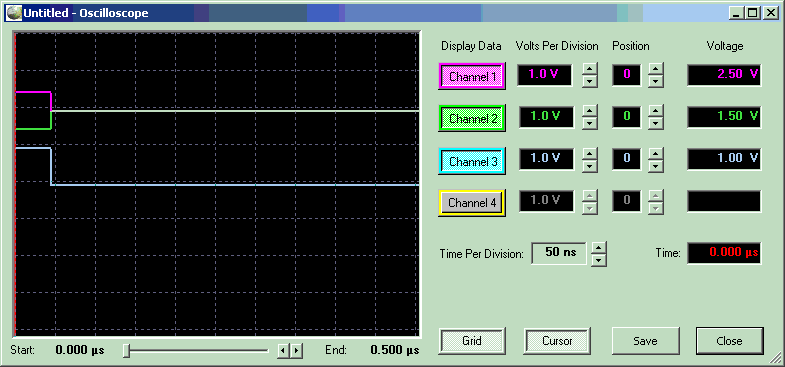

Example oscilloscope output of the above signal generator:
Probe Setup:
