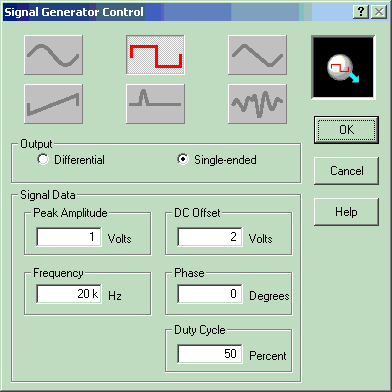

Peak Amplitude
Enter desired amplitude in volts. A negative value will invert the signal.
DC Offset
Enter desired DC voltage offset value for the signal.
Frequency
Enter desired frequency value in Hz. (If the frequency is set to zero, the signal generator will output a DC voltage equal to DC Offset value.)
Phase
Enter the initial phase value in degrees.
Duty Cycle
Enter desired duty cycle value in percent. This is the percentage of each period the signal will be at its peak amplitude.

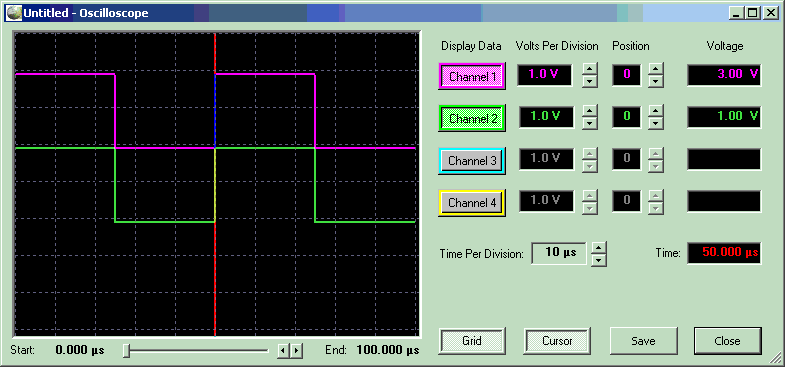

Example oscilloscope output of the above signal generator:
Probe Setup:
