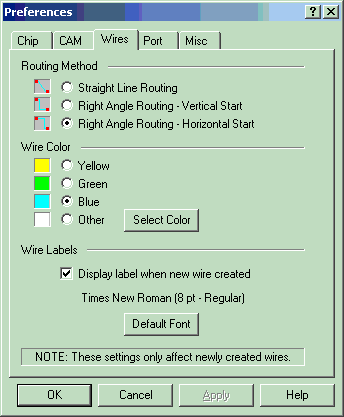

Routing Method – Select the default routing method used for display of new wires:
·Straight Line Routing: Wire drawn directly from input contact to output contact
·Right Angle Routing: Wire drawn using right angles, avoiding obstacles in its path. If a right angle routing is selected, but there is no route found due to too many obstacles, the routing will default back to straight line routing. (Vertical / Horizontal specifies the direction of the first segment in the wire to attempt)
Wire Color – Select the default color for new wires:
·Yellow, Green, and Blue are default color’s available.
·Click on Select Other to pick a custom color of your choice.
Wire Labels – Set the default font, and visibility of new wire labels:
·If Display label when new wire created is checked, then new wires will have their labels visible by default, otherwise they will be hidden by default.
·Click on Default Font to change the font used in new wire labels.
