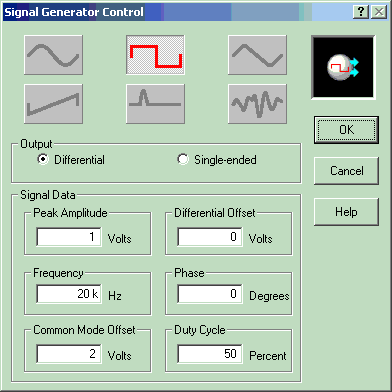

Peak Amplitude
Enter desired amplitude in volts. A negative value will invert the signal.
Differential Offset
Enter desired voltage offset value for the differential signal.
Frequency
Enter desired frequency value in Hz. (If the frequency is set to zero, the signal generator will output a DC voltage equal to the Differential Offset value.)
Phase
Enter the initial phase value in degrees.
Common Mode Offset
Enter desired common mode offset value.
Duty Cycle
Enter desired duty cycle value in percent. This is the percentage of each period the signal will be at its peak amplitude.

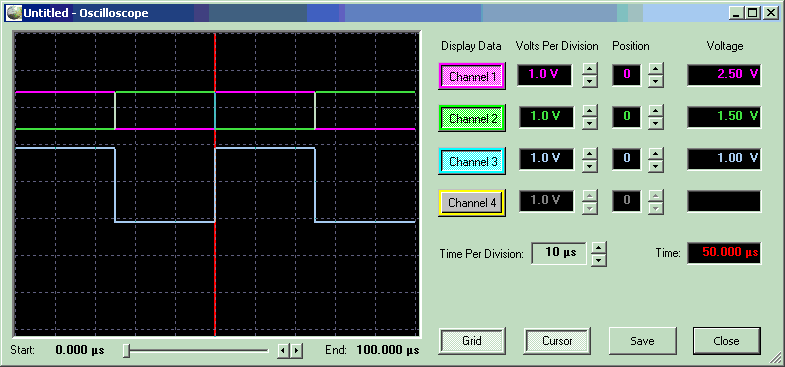

Example oscilloscope output of the above signal generator:
Probe Setup:
